3 db Hybrid Couplers
 P/N | (1) Frequency Range (GHz) | (2) Coupling Loss (dB) | Isolation (db) | Amplitude Balance (dB) | Max. Input/Out VSWR | Phase Balance (Deg. Max) |
|---|---|---|---|---|---|---|
| H-0510 | 0.5-1 | 3.2 ± 0.30 | 25 | 1.2 | 1.2 | 3 |
| H-1020 | 1-2 | 3.2 ± 0.30 | 25 | 1.2 | 1.2 | 3 |
| H-2652 | 2.6-5.2 | 3.2 ± 0.30 | 20 | 1.2 | 1.25 | 3 |
| H-2040 | 2-4 | 3.2 ± 0.30 | 20 | 1.2 | 1.2 | 3 |
| H-4080 | 4-8 | 3.3 ± 0.30 | 18 | 1.4 | 1.25 | 3 |
| H-7012 | 7-12 | 3.4 ± 0.80 | 17 | 1.4 | 1.4 | 5 |
| H-7516 | 7.5-16 | 3.6 ± 0.80 | 15 | 1.4 | 1.4 | 5 |
| H-1218 | 12-18 | 3.6 ± 0.80 | 15 | 1.4 | 1.5 | 5 |
- Change model number prefix to specify type as follows:
- “H” Series- No Termination
- “HT” Series- Terminated
- “N” connectors Avalilable
Frequency Range: 0.2-18 GHz, Octave Bands
Nominal Impedance: 50 ohms
Connector: SMA-Female
Nominal Coupling: 3 dB
Maximum Power: 100WCW, 10KW peak
Temperature Range: -55 to 85° C.
Construction: Stripline
Phase Balance: 1° or 5° , depending on frequency
Amplitude Balance: ± 0.70 dB

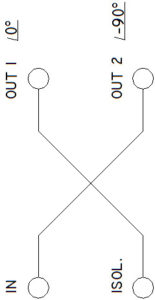

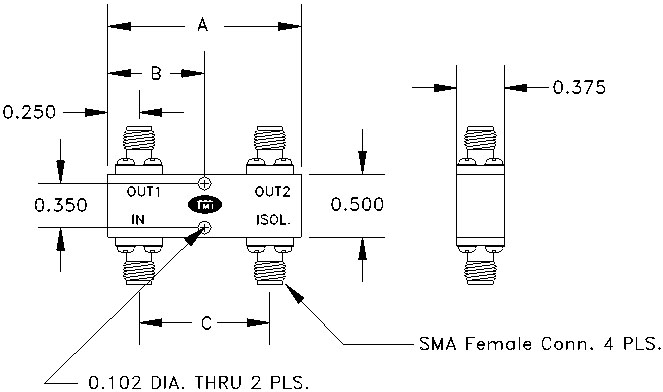

| OUTLINE | Freq. Range. GHz | A | B | C |
|---|---|---|---|---|
| 1 | 0.5 to1 | 3.50 | 1.75 | 3.00 |
| 2 | 1 to 2 | 2.00 | 1.00 | 1.50 |
| 3 | 2 to 4 | 1.25 | 0.625 | 0.750 |
| 4 | 4 to18 | 1.00 | 0500 | 0.500 |
